Boeing 737-219

Aircraft Data

The B737 is a twin engined short to medium range narrow body airliner. It is the most successful airliner in its class, first delivered in 1967, it has been developed continuously into a family of increasingly capable versions.

The -200 was the main production variant of the Classic 737 being slightly longer than the initial variant, the -100. Had up to 60% structural commonality with the Boeing 727, having 6 abreast seating was a major selling point in a small airliner.

Summary data for Boeing 737 200
Country of originFirst flightNo. builtNo. in serviceCrewPassengers
USA19671114400297 - 136

Power

2 x Pratt & Whitney JT8D (16000 - 20000 lbf) turbofan engines.

Typical fit is the JT8D-17 with 16000lb thrust.


Dimensions

Dimensions for Boeing 737 200
Length100 ft. 2 in.
Wing Span93 ft. 0 in.
Height37 ft. 0 in.
Empty Weight60,600 lbs.
Max Weight115,500 lbs.

Performance

Performance of Boeing 737 200
Max Speed509 kts
Cruise Speed460 kts
Ceiling35,000 ft.
Normal Range1,900nm
Max Range2,300nm (Max range could vary according to engines fitted, plus weight options.)

Updated 2nd June 2011

Show using: Metric | Imperial



show more...

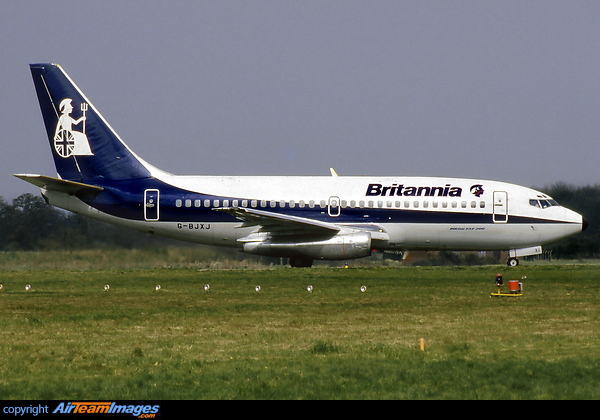

Boeing 737-219

Manufacturer:
Type/Model:
Version:
Registration:
Colour Scheme:
Taken By:
Date Taken:
22nd October 1988
Image ID:
162113
