Boeing 737-4K5

Aircraft Data

The B737 is a twin engined short to medium range narrow body airliner. It is the most successful airliner in its class, first delivered in 1967, it has been developed continuously into a family of increasingly capable versions.

The -400 was the second of the New Generation 737 family, it had a 10ft stretch over the -300 and shared the CFM56-3 engine in large nacelles under the wing, and the modernised cabin.It had a glass cockpit as standard.

Summary data for Boeing 737 400
Country of originFirst flightNo. builtNo. in serviceCrewPassengers
USA19884863002146 - 170

Power

2 x CFM CFM56 (18500 - 34000 lbf) turbofan engines.

Uses the CFM56-3B2 engine at 22100lb thrust


Dimensions

Dimensions for Boeing 737 400
Length119 ft. 7 in.
Wing Span94 ft. 9 in.
Height36 ft. 9 in.
Empty Weight76,200 lbs.
Max Weight150,000 lbs.

Performance

Performance of Boeing 737 400
Max Speed491 kts
Cruise Speed429 kts
Ceiling37,000 ft.
Max Range2,090nm (Range at Max. take off weight.)

Updated 2nd June 2011

Show using: Metric | Imperial



show more...

Related Image Searches

The following keywords are used for this image - select a keyword to see related images. show more...

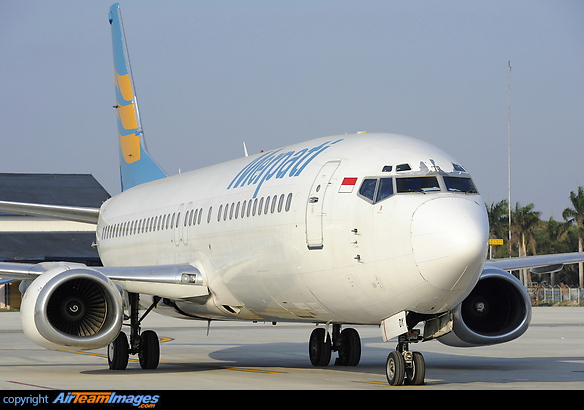

Boeing 737-4K5
