Cessna 525 Citation CJ1

Aircraft Data

The CitationJet short to medium range business jet family was essentially a replacement for the original Citation I family. It retains that aircraft's forward fuselage, but has a new T-tail assembly and a new supercritical wing.

The Citationjet was the original production version, it was soon upgraded to the CJ1 variant, with detail improvements. The latest production variant is the CJ1+, with electronic engine controls, revised avionics and an uprated engine.

Summary data for Cessna CitationJet CJ1
Country of originFirst flightNo. builtNo. in serviceCrewPassengers
USA199170069524 - 5

Power

2 x Williams FJ44 (1900 - 2400 lbf) turbofan engines.

Uses the FJ-44-1AP, rated at 1965lb thrust


Dimensions

Dimensions for Cessna CitationJet CJ1
Length (figures refer to the CJ1+)
Wing Span46 ft. 11 in.
Height13 ft. 11 in.
Empty Weight6,765 lbs.
Max Weight10,700 lbs.

Performance

Performance of Cessna CitationJet CJ1
Max Speed389 kts (figures refer to the CJ1+)
Cruise Speed350 kts
Ceiling41,000 ft.
Normal Range1,000nm
Max Range1,300nm (Range with maximum fuel)

Updated 25th November 2008

Show using: Metric | Imperial



show more...

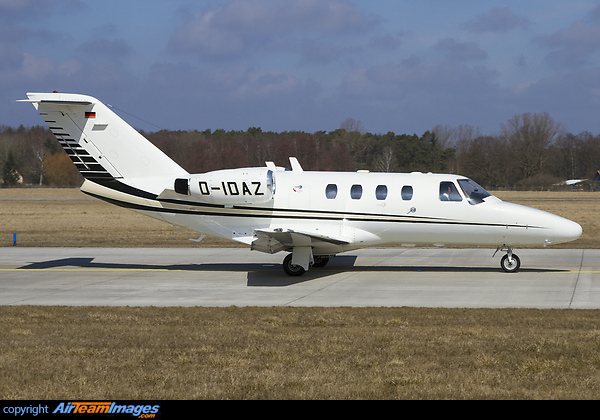

Cessna 525 Citation CJ1

Manufacturer:
Type/Model:
Version:
Registration:
Colour Scheme:
Location:
Taken By:
Date Taken:
7th April 2013
Image ID:
173286
