Supermarine Spitfire LF9C

Image Description

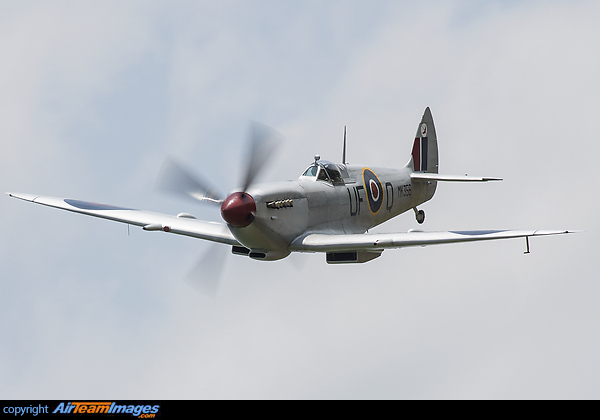

Seen here performing a few nice passes at the Breighton Buckerfest 2013

Aircraft Data

The Spitfire was the RAF's first all metal stressed skin single engine fighter. It was produced from 1938-47 serving throughout WW2 and on into the 1950s in a series of increasingly capable versions. Over 40 examples are still airworthy world wide.

The Mk.IX was produced to counter the FW190. As a matter of urgency the basic Mk.Vc airframe was married to the new Merlin 61 with a 2 speed supercharger. For many the Mk.IX was the definitive Spitfire, and was produced in the greatest number.

Summary data for Supermarine Spitfire Mk.IX
Country of originFirst flightNo. builtNo. in serviceCrewPassengers
United Kingdom19425665n/a1n/a

Power

1 x Rolls Royce Merlin (880 - 1315 hp) piston engine.

The Mk.IX used the Merlin 60 series rated at around 1700hp.


Weapons

2x 20mm Hispano canon and 2x .5 inch machine guns plus 1x 500lb and 2x 250lb bombs.


Dimensions

Dimensions for Supermarine Spitfire Mk.IX
Length31 ft. 4 in.
Wing Span32 ft. 7 in. - 36 ft. 10 in. (low level variants had clipped wings)
Height12 ft. 10 in.
Empty Weight5,800 lbs.
Max Weight7,500 lbs.

Performance

Performance of Supermarine Spitfire Mk.IX
Max Speed404 - 414 mph
Cruise Speed322 - 328 mph
Ceiling4,500 - 42,500 ft.
Normal Range434mi.
Max Range980mi.

Updated 22nd November 2008

Show using: Metric | Imperial



show more...

Related Image Searches

The following keywords are used for this image - select a keyword to see related images. show more...

Supermarine Spitfire LF9C

Manufacturer:
Type/Model:
Version:
Registration:
Taken By:
Date Taken:
13th July 2013
Image ID:
180633
