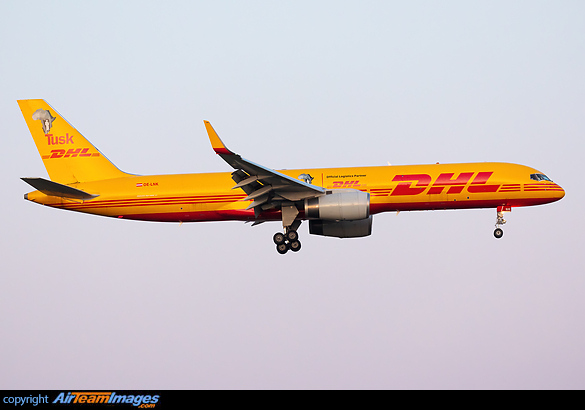

Boeing 757-223(PCF)

Colour Scheme:
Taken By:
Date Taken:
5th June 2023
Image ID:

Commercial & Editorial Use

For information on this photo or to request a quotation to supply this image as a high resolution file for commercial or editorial purposes.

Aircraft Data

The Boeing 757 is a medium range narrow body passenger airliner. It was the successor to the B727, with the same fuselage cross section, but the airframe was redesigned with underwing fan engines. The 757 was developed in tandem with the 767.

The B757-200F is an all-cargo variant of the 757. It has no windows and a large cargo door fitted at the forward end of the left-hand side. The PF is the 757F built from new, but many ex-passenger 757s have been converted into 757SF freighters.

Summary data for Boeing 757 200F
Country of originFirst flightNo. builtNo. in serviceCrewPassengers


2 x Pratt & Whitney PW2000 (41700 lbf) or Rolls Royce RB211-535 Series (37000 - 43100 lbf) turbofan engines.

Typical engines include the RB211-535E4 at 40200 lb, or PW2040 at 41700 lb.


Dimensions for Boeing 757 200F
Length155 ft. 0 in.
Wing Span124 ft. 10 in.
Height44 ft. 10 in.
Empty Weight115,580 lbs.
Max Weight255,000 lbs. (Max take-off weight version )


Performance of Boeing 757 200F
Max Speed493 kts
Cruise Speed460 kts
Ceiling42,000 ft.
Normal Range3,150nm (Loaded with 15 standard freight containers. )
Max Range3,300nm

Updated 9th December 2008
